Understanding Kasco Fountain Model Numbers (VFX, JF, & AF Explained)

Quick Answer

Kasco fountain model names can seem confusing at first, but the letters and numbers actually provide useful information about the type of fountain, horsepower, voltage, and electrical phase of the unit.

In general:

• VFX Series = Display aerators that combine an attractive V-shaped spray pattern with effective water circulation and aeration
• JF Series = Decorative fountains designed primarily for visual appeal with multiple interchangeable spray patterns
• AF Series = Surface aerators built for strong oxygen transfer and water movement rather than decorative spray patterns

The numbers in most Kasco model names generally correspond to the horsepower class and platform size of the unit. For example:

• 2400 models are generally 1/2 HP
• 3400 models are generally 3/4 HP
• 4400 models are generally 1 HP
• 8400 models are generally 2 HP
• 3.1 models are typically 3 HP single-phase units
• 5.1 models are typically 5 HP single-phase units
• 7.3 models are typically 7.5 HP three-phase units

Some Kasco model names also include additional identifiers:

• H often indicates a higher-voltage version compared to the standard model
• .1 commonly refers to single-phase power
• .3 commonly refers to three-phase power

Understanding these naming conventions can make it much easier to compare fountains, choose the right system for your pond, and determine whether you need a decorative fountain, display aerator, or high-performance surface aerator. If you are unsure what size fountain you need, check out our guide on choosing the right pond fountain size.

---

What Does “VFX” Mean?

The Kasco VFX Series is a display aerator designed to combine decorative appearance with strong aeration performance. These units create Kasco’s well-known V-shaped spray pattern while also circulating and oxygenating the water.

Because VFX units balance aesthetics and water quality benefits, they are one of the most popular choices for farm ponds, HOA ponds, golf courses, and residential properties.

Compared to purely decorative fountains, VFX units typically provide better circulation and oxygen transfer while still maintaining an attractive display.

What Are VFX Fountains Best For?

• Pond owners who want both appearance and aeration
• Farm ponds
• HOA ponds
• Golf course ponds
• Overall pond health improvement

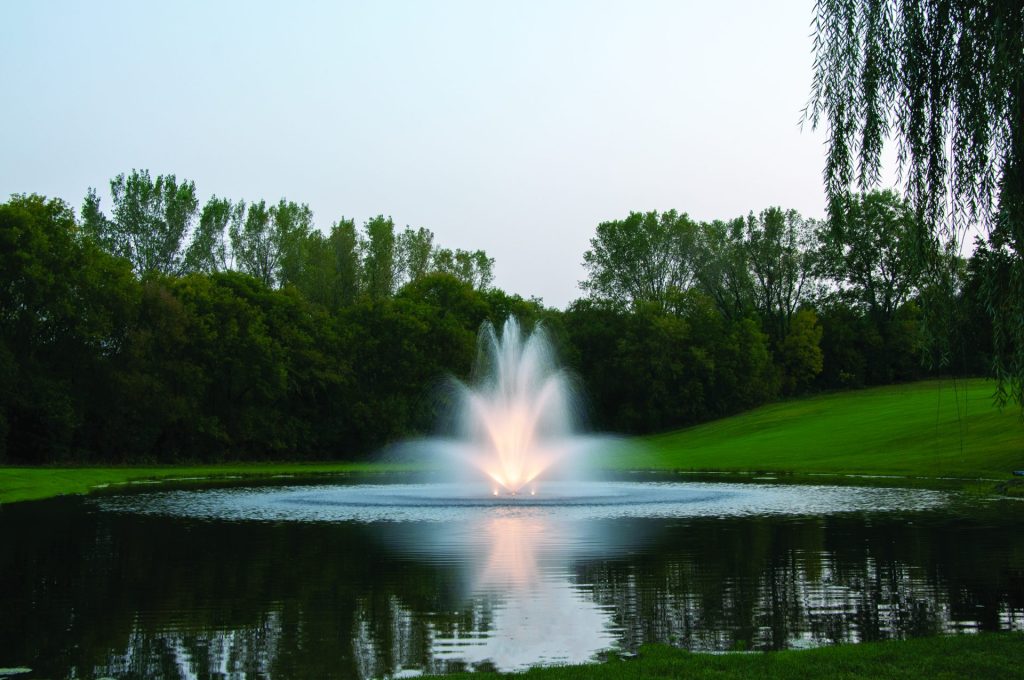

What Does “JF” Mean?

The Kasco JF Series refers to decorative fountains designed primarily for visual appeal. Unlike VFX units, JF fountains use interchangeable nozzles to create a variety of spray patterns and display styles.

These fountains are commonly used where aesthetics are the top priority, such as commercial entrances, retention ponds, landscape water features, apartment complexes, and decorative backyard ponds.

Many pond owners choose JF fountains because they offer more spray pattern variety and a more dramatic appearance than display aerators.

What Are JF Fountains Best For?

• Decorative pond displays
• Commercial properties
• Entrance ponds
• Landscape water features
• Customers wanting interchangeable spray patterns

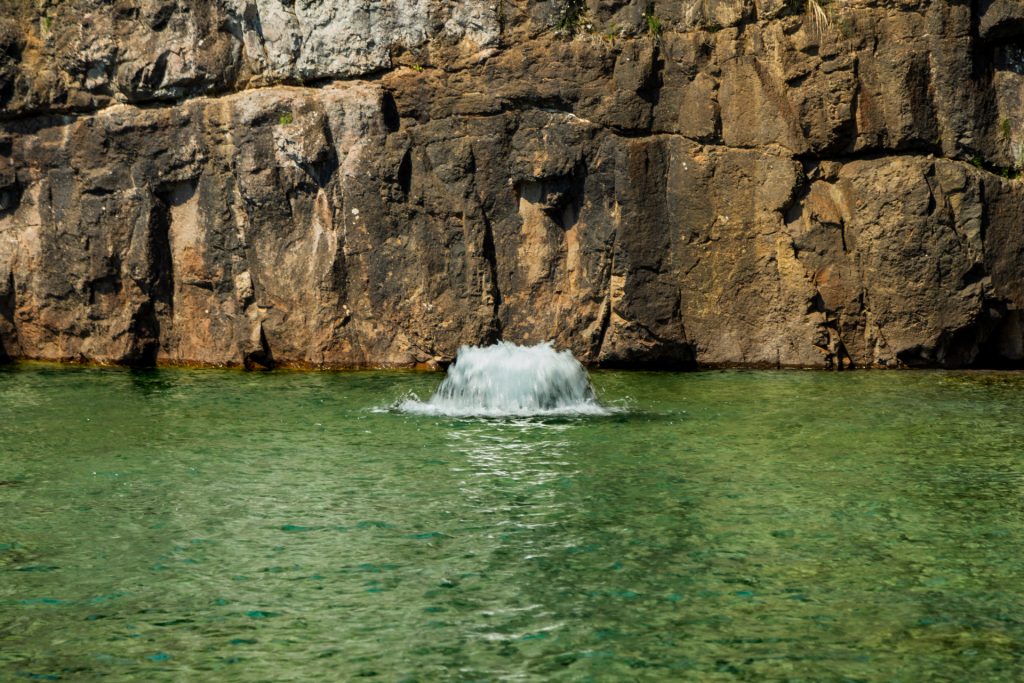

What Does “AF” Mean?

The Kasco AF Series stands for surface aerators. These units are designed primarily for water movement, circulation, and oxygen transfer rather than decorative spray patterns.

AF units typically produce a lower-profile spray but move large amounts of water and provide excellent aeration performance. Because of this, they are often used in ponds with algae issues, low oxygen levels, fish health concerns, or water quality problems.

Surface aerators are commonly used in fish ponds, wastewater lagoons, industrial applications, and ponds where performance matters more than appearance.

What Are AF Surface Aerators Best For?

• Maximum oxygen transfer
• Fish ponds
• Algae control
• Water quality improvement
• Wastewater and industrial applications

Understanding Kasco Model Numbers & Horsepower Ratings

Kasco model numbers often provide clues about the fountain’s horsepower, voltage configuration, and electrical phase. While the naming structure can seem confusing at first, understanding the basics makes it much easier to compare different Kasco fountains and aerators.

Understanding Kasco Model Numbers

*Available voltage and phase configurations can vary by Kasco series and production year.

*On smaller Kasco models, “H” commonly indicates a 208–240V version. On larger three-phase models, “H” commonly indicates a 460–480V version.



In general, larger model numbers correspond with larger motors, higher water flow, taller spray patterns, and increased aeration performance.

For example:

• A 2400 series unit is typically a 1/2 HP fountain or aerator
• A 4400 series unit is generally a 1 HP model
• A 5.1 series unit refers to a 5 HP platform

Higher horsepower models are commonly used in larger ponds, lakes, golf courses, commercial properties, and municipal applications.

What Does the “H” Mean in Models Like 4400HJF?

In many Kasco fountain model names, the letter “H” indicates a high-voltage version of the unit.

For smaller single-phase models (typically 3/4 HP and 1 HP), the “H” version usually changes the fountain from standard 120V operation to 208–240V operation.

For example:

• 4400JF = 120V decorative fountain
• 4400HJF = 208–240V decorative fountain

The “H” designation is commonly used on smaller Kasco models to identify 208–240V versions of the unit.

However, once you move into larger Kasco models (2 HP and above), the standard versions are already designed for 208–240V operation. In these larger models, the “H” designation typically identifies the 460–480V version of the same fountain or aerator.

For example:

• 5.1VFX = 208–240V single-phase display aerator
• 5.3VFX = 208–240V three-phase display aerator
• 5.3HVFX = 460–480V three-phase display aerator

Higher-voltage systems are commonly used for larger ponds, commercial installations, and long power cord runs because they reduce amperage draw and help minimize voltage drop.

For most pond owners and standard commercial properties, 120V or 208–240V fountains are the most common installations. 460–480V three-phase units are typically reserved for specialized commercial or industrial applications and are far less common in standard pond fountain installations. Due to the higher voltages involved, these systems often require additional electrical planning, safety considerations, and site restrictions.



Understanding Single Phase vs Three Phase Models

Some larger Kasco fountains and aerators are also available in different electrical phase configurations.

For example:

• 3.1 = 3 HP single-phase model
• 5.1 = 5 HP single-phase model
• 7.3 = 7.5 HP three-phase model

In many Kasco model numbers:

• “.1” commonly refers to single-phase power
• “.3” commonly refers to three-phase power

Single-phase power is most common in residential and light commercial applications, while three-phase power is typically found in industrial, municipal, and large commercial installations.

Three-phase systems are often used for larger horsepower equipment because they can operate more efficiently and with lower starting current requirements.

Decorative Fountain vs Display Aerator vs Surface Aerator

Type	Main Purpose	Spray Appearance	Aeration Performance
VFX	Appearance + aeration	V-shaped spray	Moderate
JF	Decorative display	Multiple nozzle patterns	Low
AF	Water circulation & oxygen transfer	Lower-profile spray	Very Good

If you are still deciding between a decorative fountain, display aerator, or surface aerator, check out our full comparison guide.

Which Kasco Series Is Right for Your Pond?

Choose a VFX If:

• You want both aeration and appearance
• You want a classic fountain display
• You need improved circulation and oxygen transfer
• You want a good balance between performance and aesthetics

Choose a JF If:

• Appearance is your top priority
• You want interchangeable spray patterns
• You prefer a more decorative fountain style
• You are designing a landscape or entrance pond

Choose an AF If:

• You mainly need aeration performance
• You are dealing with algae or low oxygen issues
• You want maximum water movement
• Water quality is more important than decorative appearance

Final Thoughts

Kasco fountain model names can seem confusing at first, but once you understand the basics, the naming structure becomes much easier to follow.

In general:

• VFX models focus on both aeration and appearance
• JF models are designed primarily for decorative displays
• AF models prioritize water movement and oxygen transfer

Understanding the differences between these series can help you choose the right fountain or aerator for your pond, lake, or commercial water feature while also making it easier to compare horsepower, voltage, and performance options.

Frequently Asked Questions

What does VFX stand for on a Kasco fountain?

VFX refers to Kasco’s display aerator series, which combines a decorative V-shaped spray pattern with strong aeration and water circulation performance.

What does JF mean on a Kasco fountain?

JF stands for Kasco’s decorative fountain series. These fountains focus primarily on visual appearance and typically offer multiple interchangeable spray patterns.

What does AF stand for on a Kasco aerator?

AF stands for surface aerator. These units are designed for maximum oxygen transfer and water movement rather than decorative spray patterns.

What does the “H” mean in Kasco model numbers?

In many smaller Kasco fountain models, the letter “H” indicates a high-voltage 208–240V version of the unit.

For example:

• 4400JF = Standard voltage
• 4400HJF = 208–240V version

Most 2 HP and larger Kasco models are typically 208–240V by default and may not include the “H” designation in the model name.

What does “.1” or “.3” mean in Kasco model numbers?

In many larger Kasco model numbers:

• “.1” typically refers to single-phase power
• “.3” typically refers to three-phase power

Single-phase power is more common in residential applications, while three-phase power is typically used in larger commercial or industrial installations.

Which Kasco series provides the best aeration?

Kasco AF Series surface aerators generally provide the highest oxygen transfer and water movement. However, VFX display aerators also provide strong aeration while adding a decorative fountain display.

Which Kasco fountain series is best for appearance?

The Kasco JF Series is designed primarily for decorative appearance and offers multiple interchangeable spray patterns for different display styles.
