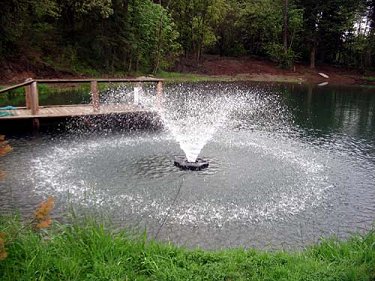

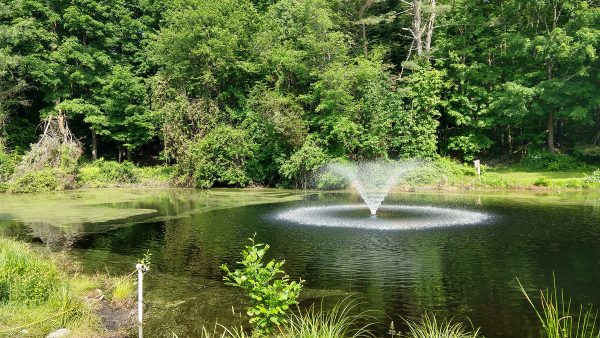

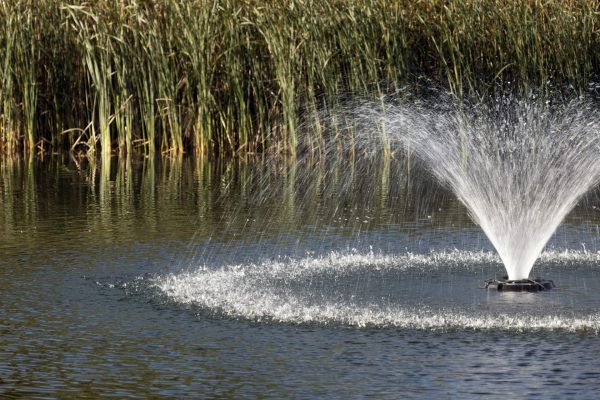

The 3400HVFX delivers reliable water circulation and an attractive display while operating on 208–240V power. Designed to balance visual appeal with effective aeration, it promotes oxygen transfer, reduces stagnation, and improves overall water clarity. The higher-voltage configuration allows for longer power cord runs with reduced voltage drop, making it a practical option for installations farther from the electrical source. Supplied as a complete, ready-to-install package.
What’s Included:
- Motor unit
- Float
- Bottom Screen
- Power cord
- Kasco C-85 Control Panel
- 3 Mooring ropes
Specifications
| Feature | Details |
| Model | 3400HVFX |
| Horsepower | 3/4 HP |
| Voltage / Phase | 208-240V, Single Phase |
| Amps | 4 A |
| Wattage (Max) | 960 W |
| Minimum Operating Depth | 17.5″ |
| Spray Pattern Size | 5.5′ High × 21′ Wide |
| Suggested Pond Size | Up to ~1/3 acre |
| Power Cord Options | 50′, 100′, 150′, 200′, 250′, 300′, 400′ |
| Float Diameter | 28″ |
| Unit Height (with Float) | 18.5″ |
| Mooring Ropes Included | 3 |
| Control Panel | C-85 (Timer, GFCI & Photocell Included) |

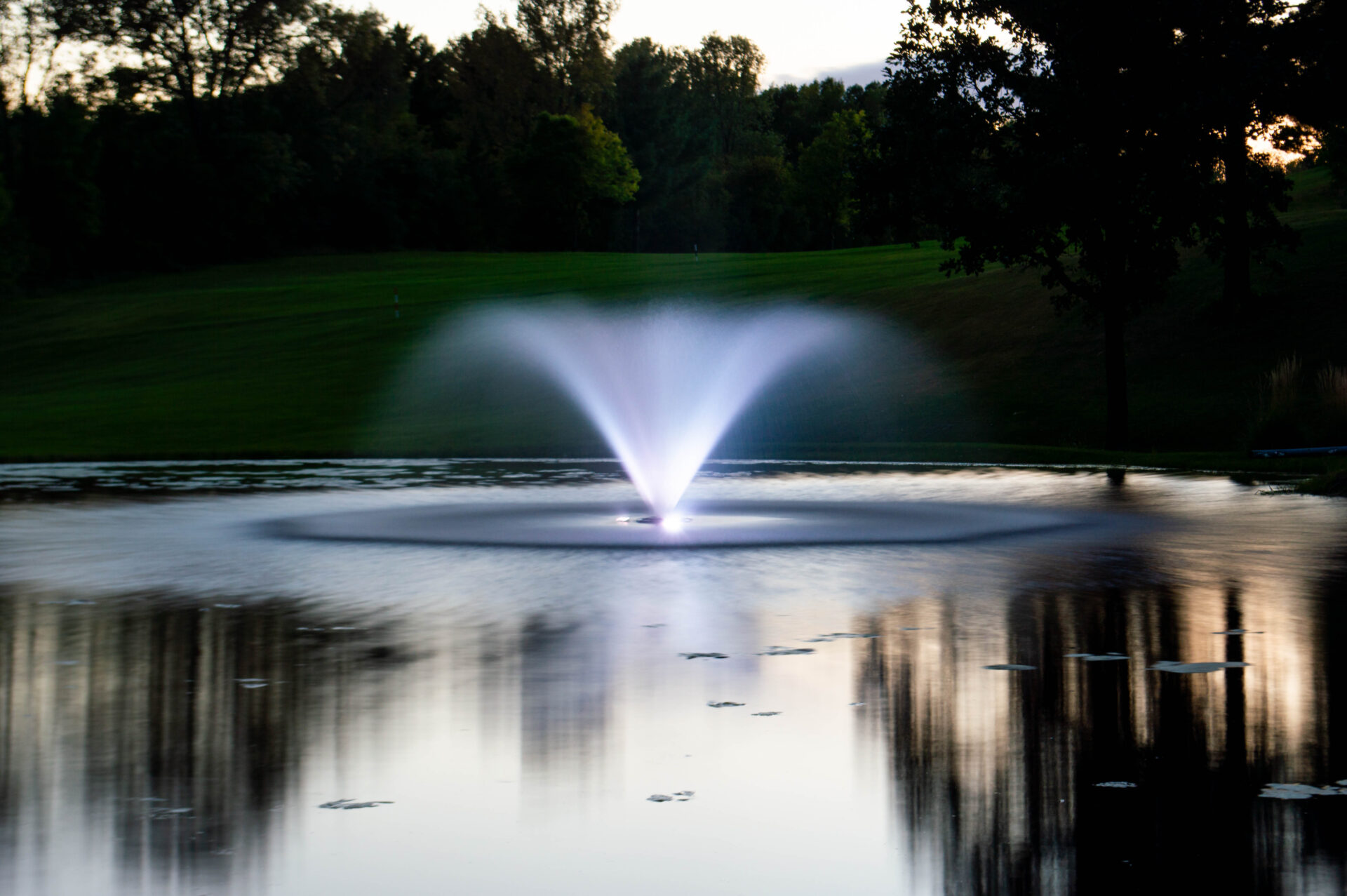

| Optional Lighting |
LED Composite Light Kit (3 Fixtures) RGB Color-Changing Light Kit (3 Fixtures) |
| Daily Operating Cost (8 hrs/day)* | ~$0.77 |
| Warranty | 2-Year |
|
*Estimated cost based on average U.S. commercial electricity rate of $0.10 per kWh. Actual costs may vary. Use our Operating Cost Calculator for a more precise estimate. |
|
