Air Diffusers

 Questions on these items? Call direct at 740-953-9990

Diffused Air (Bottom) Pond Aerators

The linear compressor offered below is for use in ponds 10 feet deep or less. (If your pond is deeper than 10 feet, please contact us for information on Kasco Robust Aire Diffuser Systems)

Air diffusers (bottom aeration systems, bubbler aerators) aerate by forcing air through a diffuser membrane.
The bubbles rise from the bottom of the pond taking oxygen depleted water to the surface to mix with oxygen rich water.

Air diffusers can be used all year long to aerate and will keep an opening in the pond during the winter for water fowl and other wildlife.

Linear compressors are among the quietest available

These units are energy efficient and generally cost less to operate than surface aerators.
  • Due to the weight of these items, shipping is figured individually to your address. Please call or email for a shipping estimate.


 DIFFUSED AIR (Bottom) POND AERATOR
For ponds 1 acre or less

Complete Kit Includes:

  • (120v) Efficient UL Listed weatherproof linear compressor that pumps 60 liters of air per minute (2.2 CFM) and uses .7 amps / 55 watts.
  • 1/2" self-weighted tubing
  • Fittings and clamps
  • Weighted Base (powder coated stainless Steel) with 9" diffuser membrane
With 50' of weighted tubing.....$392.50 plus shipping
With 100' of weighted tubing.....$482.00 plus shipping





DIFFUSED AIR (Bottom) POND AERATOR


Complete Kit Includes:

  • (120v) Efficient UL Listed weatherproof linear compressor that pumps 100 liters of air per minute (3.53 CFM) and uses .9 amps / 105 watts.
  • 1/2" self-weighted tubing (100' rolls)
  • Fittings and clamps
  • Two Weighted Base (powder coated stainless Steel) with 9" diffuser membrane
  • 1/2" Manifold with valves
With 100' of weighted tubing.....$716.00 plus shipping
With 200' of weighted tubing.....$895.00 plus shipping

Items to purchase separately

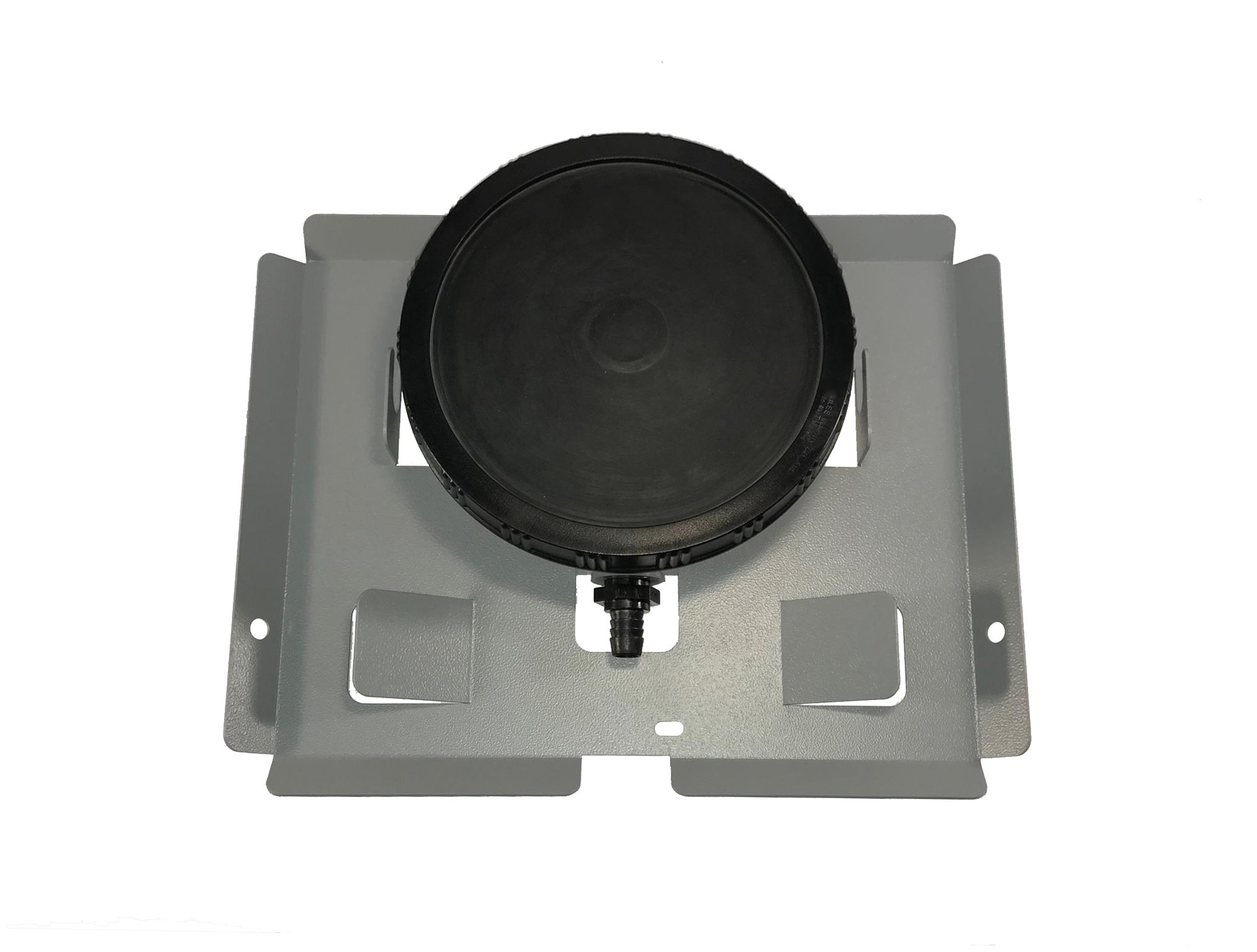

Weighted Base (powder coated stainless steel) with 9" diffuser membrane, 1/2" male adapter with clamp.

$123.00







100' of 1/2" weighted (self-sinking) tubing.

$179.00





(120v) UL Listed weatherproof linear air compressor that pumps 60 liters of air per minute (2.2 CFM) and uses .5 amps / 55 watts. $180.00

(120v) UL Listed weatherproof linear air compressor that pumps 100 liters of air per minute (3.53 CFM) and uses .9 amps / 105 watts. $232.00

(120v) UL Listed weatherproof linear air compressor that pumps 120 liters of air per minute (4.24 CFM) and uses 1.1 amps / 125 watts. $262.00

Rebuild kits for 60 / 80 / 100 / 120 LPM Compressors (Rebuild kit includes 2 diaphragms, 1 magnet bar and air filter)

$48.00

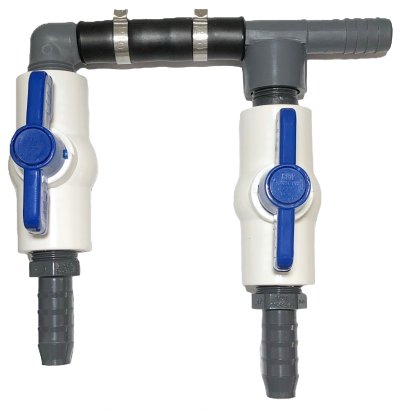

1/2" manifold with valves and clamps (for additional line / diffusers)

$29.00
